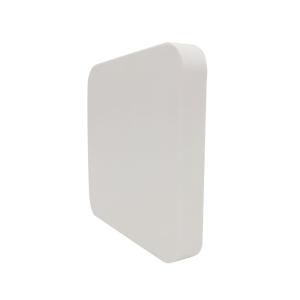

Outdoor UWB Antenna Panel Antenna 3700-4200MHz 14dBi N Connector 186x186x28mm

Product Categories

Dongguan Leenz Electronics Co., Ltd

Trust Seal

Verified Supplier

Credit Check

Supplier Assessment

Contact Now

Name: Outdoor UWB Antenna Panel Antenna 37004200MHz 14dBi N Connector 186x186x28mm
Brand: Leenz
Price: 1 USD

Brand Name : Leenz

Model Number : LZANT-10807-A

Certification : RoHs

Place of Origin : China

MOQ : 10

Payment Terms : T/T

Supply Ability : 5K per day

Delivery Time : 15 days

Frequency : 3700-4200MHz

VSWR : <2.0

Peak Gain : 14dBi

Impedance : 50

Contact Now

UWB Antenna Outdoor Panel antenna 3700-4200MHz 14 dBi N connector 186x186x28

1. Specification

A. Electrical Characteristics
Frequency	3700-4200MHz
S.W.R.	<2.0
Antenna Gain	14dBi
Polarization	Vertical
Horizontal Beamwidth	33-44°
Vertical Beamwidth	32-39°
F/B	>25dB
Impedance	50Ohm
Max. Power	50W
B. Material & Mechanical Characteristics
Connector Type	N connector
Dimension	18618628mm
Radome material	ABS
Weight	0.835Kg
C. Environmental
Operation Temperature	- 40 ˚C ~ + 85 ˚C
Storage Temperature	- 40 ˚C ~ + 85 ˚C
Operation Humidity	＜95%
Rated Wind Velocity	36.9m/s

2. Antenna - S Parameter Test Data
2.1 VSWR

Outdoor UWB Antenna Panel Antenna 3700-4200MHz 14dBi N Connector 186x186x28mm

2.2 Total Efficiency & Gain:

2.3 Radiation Pattern
