Ultra-Wideband UWB Antennas 3700-4200MHz 17dB N Connector 220x220x25mm

Product Categories

Dongguan Leenz Electronics Co., Ltd

Trust Seal

Verified Supplier

Credit Check

Supplier Assessment

Contact Now

Name: UltraWideband UWB Antennas 37004200MHz 17dB N Connector 220x220x25mm
Brand: Leenz
Price: 1 USD

Brand Name : Leenz

Model Number : LZANT-10543-A

Certification : RoHs

Place of Origin : China

MOQ : 10

Payment Terms : T/T

Supply Ability : 5K per day

Delivery Time : 15 days

Frequency : 3700-4200MHz

VSWR : <2.0

Peak Gain : 18dBi

Impedance : 50

Contact Now

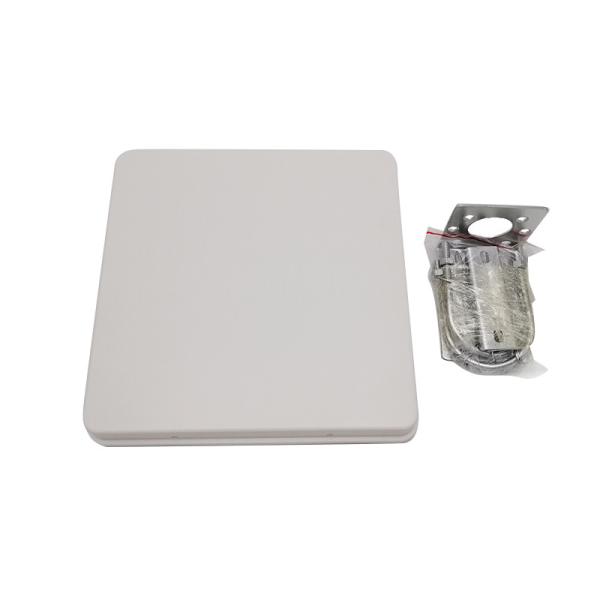

UWB Antenna Outdoor Flat Panel antenna 3700-4200MHz 17 dBi N connector 220x220x25

1. Specification

A. Electrical Characteristics
Frequency	3700-4200MHz
S.W.R.	<2.0
Antenna Gain	17dBi
Polarization	Vertical
Horizontal Beamwidth	13-15°
Vertical Beamwidth	23-25°
F/B	>24dB
Impedance	50Ohm
Max. Power	50W
B. Material & Mechanical Characteristics
Connector Type	N connector
Dimension	22022025mm
Radome material	ABS
Weight	1.09Kg
C. Environmental
Operation Temperature	- 40 ˚C ~ + 85 ˚C
Storage Temperature	- 40 ˚C ~ + 85 ˚C
Operation Humidity	＜95%
Rated Wind Velocity	36.9m/s

2. Antenna - S Parameter Test Data
2.1 VSWR

Ultra-Wideband UWB Antennas 3700-4200MHz 17dB N Connector 220x220x25mm

2.2 Total Efficiency & Gain:

2.3 Radiation Pattern

Product Tags:

UWB Antennas 3700-4200MHz
