14dBi UWB Antenna Outdoor Ultrawideband 3700-4200MHz SMA Connector 140x120x25

Product Categories

Dongguan Leenz Electronics Co., Ltd

Trust Seal

Verified Supplier

Credit Check

Supplier Assessment

Contact Now

Name: 14dBi UWB Antenna Outdoor Ultrawideband 37004200MHz SMA Connector 140x120x25
Brand: Leenz
Price: 1 USD

Brand Name : Leenz

Model Number : LZANT-10275-A

Certification : RoHs

Place of Origin : China

MOQ : 10

Payment Terms : T/T

Supply Ability : 5K per day

Delivery Time : 15 days

Frequency : 3700-4200MHz

VSWR : <2.0

Peak Gain : 14dBi

Impedance : 50

Contact Now

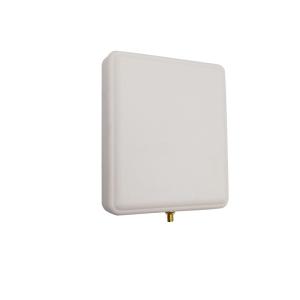

UWB Antenna Outdoor Flat Panel antenna 3700-4200MHz 14 dBi SMA connector 140x120x25

1. Specification

A. Electrical Characteristics
Frequency	3700-4200MHz
S.W.R.	<= 1.8
Antenna Gain	14dBi
Polarization	Vertical
Horizontal Beamwidth	37-41°
Vertical Beamwidth	31-41°
F/B	>23dB
Impedance	50Ohm
Max. Power	50W
B. Material & Mechanical Characteristics
Connector Type	SMA connector
Dimension	14012025mm
Radome material	ABS
Weight	0.37Kg
C. Environmental
Operation Temperature	- 40 ˚C ~ + 85 ˚C
Storage Temperature	- 40 ˚C ~ + 85 ˚C
Operation Humidity	＜95%
Rated Wind Velocity	36.9m/s

2. Antenna - S Parameter Test Data
2.1 VSWR

14dBi UWB Antenna Outdoor Ultrawideband 3700-4200MHz SMA Connector 140x120x25

2.2 Total Efficiency & Gain:

Frequency (MHz)	3700.0	3750.0	3800.0	3850.0	3900.0	3950.0	4000.0	4050.0	4100.0	4150.0	4200.0
Gain (dBi)	12.279	12.139	12.294	12.342	12.884	13.190	13.462	13.360	13.500	13.556	13.694

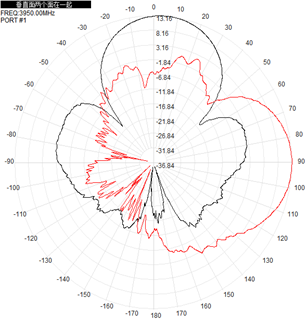

2.3 Radiation Pattern
