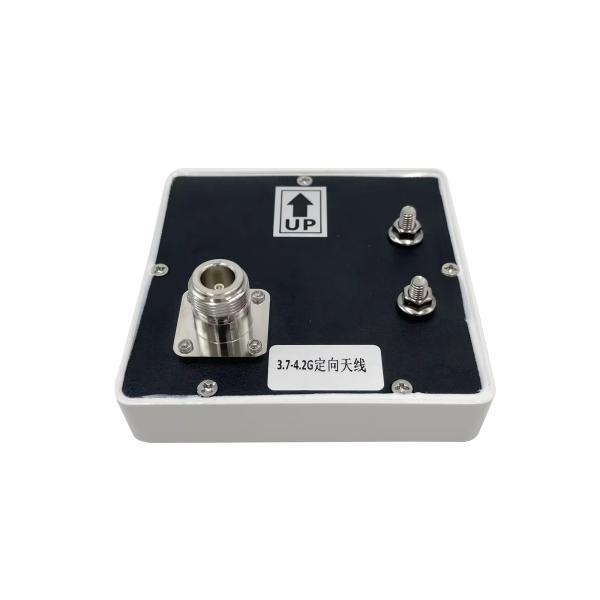

Directional Uwb Chip Antenna 3700-4200MHz 9DBi 97x97x23mm Flat Panel Antenna

Product Categories

Dongguan Leenz Electronics Co., Ltd

Trust Seal

Verified Supplier

Credit Check

Supplier Assessment

Contact Now

Name: Directional Uwb Chip Antenna 37004200MHz 9DBi 97x97x23mm Flat Panel Antenna
Brand: Leenz
Price: 1 USD

Brand Name : Leenz

Model Number : LZANT-10486-A

Certification : RoHs

Place of Origin : China

MOQ : 10

Payment Terms : T/T

Supply Ability : 5K per day

Delivery Time : 15 days

Frequency : 3700-4200MHz

VSWR : <1.6

Peak Gain : 10dBi

Impedance : 50

Contact Now

Outdoor Waterproof Directional Antenna Flat Panel Antenna UWB Antenna 3700-4200MHz 9 DBi 97x97x23

1. Specification

A. Electrical Characteristics
Frequency	3700-4200MHz
S.W.R.	<1.6
Antenna Gain	10dBi
Polarization	Vertical
Horizontal Beamwidth	73±3°
Vertical Beamwidth	68±13°
F/B	>16dB
Impedance	50Ohm
Max. Power	50W
B. Material & Mechanical Characteristics
Connector Type	N connector
Dimension	979723mm
Radome material	ABS
Weight	0.11Kg
C. Environmental
Operation Temperature	- 40 ˚C ~ + 85 ˚C
Storage Temperature	- 40 ˚C ~ + 85 ˚C
Operation Humidity	＜95%
Rated Wind Velocity	36.9m/s

2. Antenna - S Parameter Test Data

2.1 VSWR

Directional Uwb Chip Antenna 3700-4200MHz 9DBi 97x97x23mm Flat Panel Antenna

2.2 Total Efficiency & Gain:

2.3 Radiation Pattern
