4G Lte Embedded Antenna Design Built In Antenna 4G FPC Antenna MHF1 Plug 1.13 Cable 30×20mm

Name: 4G Lte Embedded Antenna Design Built In Antenna 4G FPC Antenna MHF1 Plug 113 Cable 3020mm
Brand: Leenz
Price: 1 USD

China 4G Lte Embedded Antenna Design Built In Antenna 4G FPC Antenna MHF1 Plug 1.13 Cable 30×20mm factory

Brand Name : Leenz

Model Number : LZANT-10176-A

Certification : RoHs

Place of Origin : China

MOQ : 10

Payment Terms : T/T

Supply Ability : 5K per day

Delivery Time : 15 days

Frequency : 700-960MHz; 1710-2700

VSWR : <4.6

Peak Gain : 4.2dBi

Impedance : 50 OHM

Contact Now

4G Lte Embedded Antenna Built In Antenna FPC Antenna MHF1 Plug 1.13 Cable 30×20

1. Specification

A. Electrical Characteristics
Frequency	700-960MHz	1710-2700MHz
S.W.R.	<4.6	<2.0
Antenna Gain	2.3dBi	4.2dBi
Efficiency	≈50%	≈50%
Polarization	Linear
Impedance	50 Ohm
Max Power	50W
B. Material & Mechanical Characteristics
Cable Type	RF1.13 Cable
Connector Type	MHF1 Plug
Dimension	30*20mm
Weight	0.001Kg
C. Environmental
Operation Temperature	- 40 ˚C ~ + 65 ˚C
Storage Temperature	- 40 ˚C ~ + 80 ˚C

2. Antenna - S Parameter Test Data

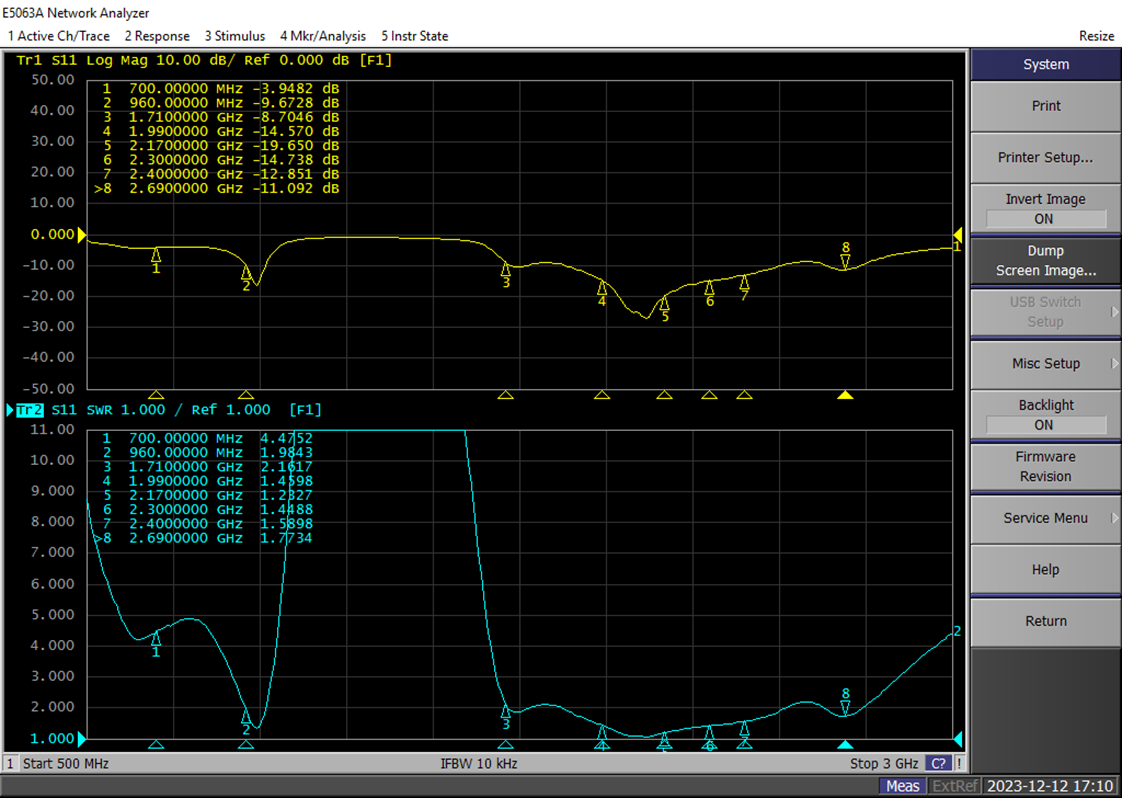

2.1 VSWR
4G Lte Embedded Antenna Design Built In Antenna 4G FPC Antenna MHF1 Plug 1.13 Cable 30×20mm

2.2 Total Efficiency & Gain:

Frequency (MHz)	700	720	740	760	780	800	820	840	860	880	900	920	940	960
Gain (dBi)	-2.84	-2.87	-2.46	-2.16	-2.42	-1.56	-1.41	-1.77	-1.76	-1.08	-0.36	0.28	2.17	2.32
Efficiency (%)	23.35	23.42	27.17	31.02	30.82	33.02	33.33	29.57	27.9	31.83	36.31	38.3	53.76	55.32

Frequency (MHz)	1710	1800	1900	2000	2100	2200	2300	2400	2500	2600	2690
Gain (dBi)	2.21	3.01	3.06	3.27	4.23	3.68	2.97	3.08	3.18	3.67	3.74
Efficiency (%)	50.59	59.86	51.75	48.32	59.14	59.57	49.95	47.05	44.23	46.24	56.66

4G Lte Embedded Antenna Design Built In Antenna 4G FPC Antenna MHF1 Plug 1.13 Cable 30×20mm

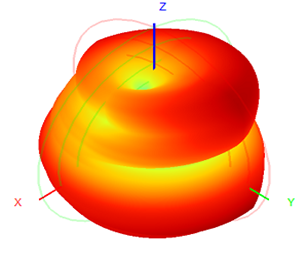

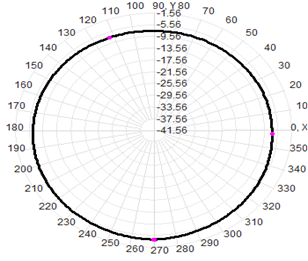

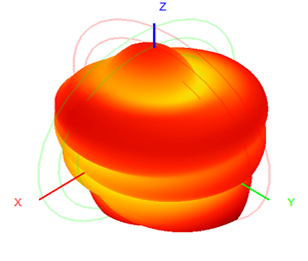

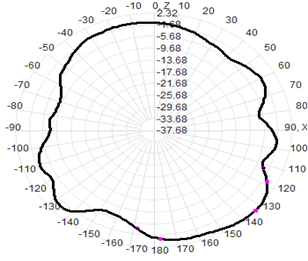

2.3 Radiation Pattern

	3D	2D-Horizontal	2D-Vertical
700MHz
800MHz
960MHz

	3D	2D-Horizontal	2D-Vertical
1700MHz
2400MHz
2690MHz
