Wifi Flexible Embedded Antenna 2.4GHz Bluetooth FPC Antenna

Product Categories

Dongguan Leenz Electronics Co., Ltd

Trust Seal

Verified Supplier

Credit Check

Supplier Assessment

Contact Now

Name: Wifi Flexible Embedded Antenna 24GHz Bluetooth FPC Antenna
Brand: Leenz
Price: 1 USD

Brand Name : Leenz

Model Number : LZANT-4412-A

Certification : RoHs

Place of Origin : China

MOQ : 10

Payment Terms : T/T

Supply Ability : 5K per day

Delivery Time : 15 days

Frequency : 2400-2500MHz

VSWR : <2.0

Peak Gain : 3dBi

Impedance : 50 OHM

Contact Now

Embedded Antenna 2.4GHz WIFI Bluetooth FPC antenna

1. Specification

A. Electrical Characteristics
Frequency	2400-2500MHz
S.W.R.	<2.0
Antenna Gain	3dBi
Efficiency	≈75%
Polarization	Linear
Horizontal Beamwidth	360°
Vertical Beamwidth	43-48°
Impedance	50 Ohm
Max Power	50W
B. Material & Mechanical Characteristics
Cable Type	RF1.13 Cable
Connector Type	MHF1 Plug
Dimension	44*12mm
Weight	0.001Kg

2. Antenna - S Parameter Test Data
2.1 VSWR
Wifi Flexible Embedded Antenna 2.4GHz Bluetooth FPC Antenna

2.2 Total Efficiency & Gain:

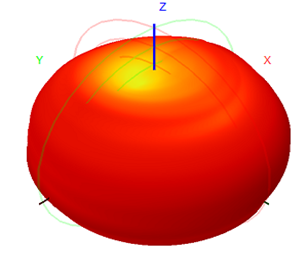

2.3 Radiation Pattern
