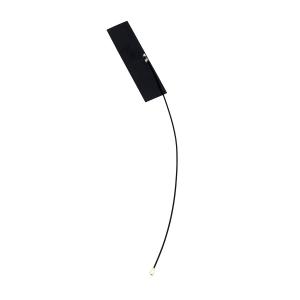

2G 3G 4G 5G Built-In FPC Antenna NB-IOT GSM Full Frequency Universal Soft PCB Built-In IPEX Flexible Antenna

Name: 2G 3G 4G 5G BuiltIn FPC Antenna NBIOT GSM Full Frequency Universal Soft PCB BuiltIn IPEX Flexible Antenna
Brand: Leenz
Price: 1 USD

China 2G 3G 4G 5G Built-In FPC Antenna NB-IOT GSM Full Frequency Universal Soft PCB Built-In IPEX Flexible Antenna factory

Brand Name : Leenz

Model Number : LZANT-10779-A

Certification : RoHs

Place of Origin : China

MOQ : 10

Payment Terms : T/T

Supply Ability : 5K per day

Delivery Time : 15 days

Frequency : 700-960MHz; 1710-2700MHz

VSWR : <3.0

Peak Gain : 3dBi

Impedance : 50 OHM

Contact Now

3G4G5G built-in FPC antenna NB-IOT GSM 2G 3G4G5G full frequency universal soft PCB built-in IPEX flexible antenna
1. Specification

A. Electrical Characteristics
Frequency	700-960MHz; 1710-2700MHz
S.W.R.	<= 3.0
Antenna Gain	-2~3dBi
Polarization	Linear
Horizontal Beamwidth	360°
Vertical Beamwidth	20-90°
Impedance	50 Ohm
Max Power	50W
B. Material & Mechanical Characteristics
Cable Type	RF1.13 Cable
Connector Type	MHF1 Plug
Dimension	81*21mm
Weight	0.001Kg
C. Environmental
Operation Temperature	- 40 ˚C ~ + 65 ˚C
Storage Temperature	- 40 ˚C ~ + 80 ˚C

2. Antenna - S Parameter Test Data
2.1 VSWR
2G 3G 4G 5G Built-In FPC Antenna NB-IOT GSM Full Frequency Universal Soft PCB Built-In IPEX Flexible Antenna

2.2 Total Efficiency & Gain:

Frequency(MHz)	Gain(dBi)	Efficiency (%)
690	-2.6	15.3
720	-2.2	17.4
750	-2.0	20.6
780	-1.4	25.8
810	-1.8	25.3
840	-1.8	26.5
870	-1.2	31.7
900	-0.1	39.1
930	0.7	44.0
960	1.7	53.3

1700	-0.5	36.5
1800	1.5	51.9
1900	3.1	61.5
2000	3.6	65.1
2100	3.2	66.6
2200	2.0	62.0
2300	0.9	53.7
2400	0.7	52.1
2500	0.6	48.5
2600	0.7	44.1
2700	0.4	45.9

2.3 Radiation Pattern

	3D	2D-Horizontal	2D-Vertical
690MHz
840MHz
960MHz

	3D	2D-Horizontal	2D-Vertical
1700MHz
2200MHz
2700MHz
