860-930M 2dBi Omnidirectional Fiberglass Reinforced Plastic Waterproof Antenna N-JW Φ20x150mm

Name: 860930M 2dBi Omnidirectional Fiberglass Reinforced Plastic Waterproof Antenna NJW Φ20x150mm
Brand: Leenz
Price: 1 USD

China 860-930M 2dBi Omnidirectional Fiberglass Reinforced Plastic Waterproof Antenna N-JW Φ20x150mm factory

Brand Name : Leenz

Model Number : LZANT-10862-A

Certification : RoHs

Place of Origin : China

MOQ : 10

Payment Terms : T/T

Supply Ability : 500 per day

Delivery Time : 15 days

Frequency : 860-930M

VSWR : <2

Peak Gain : 2dBi

Impedance : 50

Contact Now

1. Specification

A. Electrical Characteristics
Frequency		860-930MHz
VSWR		< 2.0
Efficiency		≈52%
Peak Gain		1.4-2dBi
Impedance		50 Ohm
Polarization		Linear
Horizontal Beamwidth		360°
Vertical Beamwidth		29-48°
T90(H) roundness		±5.5
Max Power		50W
B. Material & Mechanical

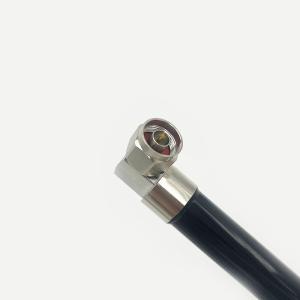

Connector Type	N-JW
Dimension	Φ20*150±5mm
Weight	0.11Kg
Radome material	Fiberglass (black)
C. Environmental
Operation Temperature	- 45˚C ~ +85 ˚C
Storage Temperature	- 45˚C ~ +85 ˚C
Rated Wind Velocity	36.9m/s
Lighting Protection	Dc grounding

2. Antenna - S Parameter Test Data
2.1 VSWR
860-930M 2dBi Omnidirectional Fiberglass Reinforced Plastic Waterproof Antenna N-JW Φ20x150mm

2.2 Total Efficiency & Gain:

Frequency(MHz)	860	870	880	890	900	910	920	930
Gain (dBi)	1.7	1.9	1.7	1.4	1.4	1.6	1.6	1.8
Efficiency (%)	53.9	55.8	53.4	51.2	49.5	50.1	49.8	51.1

2.3 Radiation Pattern

	3D	2D-Horizontal	2D-Vertical
860MHz
900MHz
930MHz
