UWB CH2 3.7-4.2G 37700-4200M 10dbi Single Polarization Directional Antenna

Brand Name : Leenz

Model Number : LZANT-10486-A

Certification : RoHs

Place of Origin : China

MOQ : 10

Payment Terms : T/T

Supply Ability : 500 per day

Delivery Time : 15 days

Frequency : 3700-4200MHz

VSWR : <2.0

Peak Gain : 10dBi

Impedance : 50

Contact Now

1. Specification

A. Electrical Characteristics
Frequency 3700-4200MHz
S.W.R. <= 2.0
Antenna Gain 10dBi
Polarization Vertical
Horizontal Beamwidth 70±5°
Vertical Beamwidth 65±10
F/B >16dB
Impedance 50Ohm
Max. Power 50W
B. Material & Mechanical Characteristics
Connector Type

N Female connector
Dimension 97*97*23mm
Radome material ABS
Weight 0.15Kg
C. Environmental
Operation Temperature - 40 ˚C ~ + 85 ˚C
Storage Temperature - 40 ˚C ~ + 85 ˚C
Operation Humidity ＜95%
Rated Wind Velocity 36.9m/s

2. Antenna - S Parameter Test Data
2.1 VSWR
UWB CH2 3.7-4.2G 37700-4200M 10dbi Single Polarization Directional Antenna

2.2 Total Efficiency & Gain:


Frequency(MHz)

Gain(dBi)

3700

9.8

3750

9.7

3800

9.8

3850

9.9

3900

9.9

3950

9.9

4000

9.6

4050

9.8

4100

9.6

4150

9.3

4200

9.0

2.3 Radiation Pattern

Port1 2D-Horizontal 2D-Vertical Horizontal & Vertical

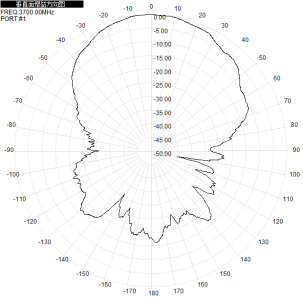

3700MHz UWB CH2 3.7-4.2G 37700-4200M 10dbi Single Polarization Directional Antenna UWB CH2 3.7-4.2G 37700-4200M 10dbi Single Polarization Directional Antenna UWB CH2 3.7-4.2G 37700-4200M 10dbi Single Polarization Directional Antenna

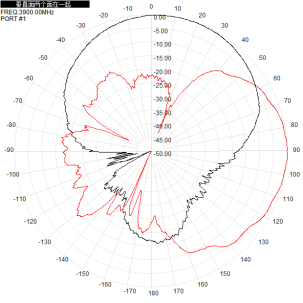

3900MHz UWB CH2 3.7-4.2G 37700-4200M 10dbi Single Polarization Directional Antenna UWB CH2 3.7-4.2G 37700-4200M 10dbi Single Polarization Directional Antenna UWB CH2 3.7-4.2G 37700-4200M 10dbi Single Polarization Directional Antenna
4200MHz UWB CH2 3.7-4.2G 37700-4200M 10dbi Single Polarization Directional Antenna UWB CH2 3.7-4.2G 37700-4200M 10dbi Single Polarization Directional Antenna UWB CH2 3.7-4.2G 37700-4200M 10dbi Single Polarization Directional Antenna










Product Tags:

Single Polarization UWB CH2 Directional Antenna



3.7-4.2G UWB CH2 Directional Antenna



10dbi UWB CH2 Directional Antenna


China UWB CH2 3.7-4.2G 37700-4200M 10dbi Single Polarization Directional Antenna factory
