Name: Magnetic Mount Wifi Antenna 24GHz 2dBi RG58 Cable 30x223
Brand: Leenz
Price: 1 USD

Brand Name : Leenz

Model Number : LZANT-10664-A

Certification : RoHs

Place of Origin : China

MOQ : 10

Payment Terms : T/T

Supply Ability : 5K per day

Delivery Time : 15 days

Frequency : 433MHz

VSWR : <2.0

Peak Gain : 2.0dBi

Impedance : 50

Contact Now

1. Specification

A. Electrical Characteristics
Frequency	433MHz
Impedance	50 Ohm
S.W.R.	<2.0
Gain	2dBi
Polarization	Linear
Horizontal Beamwidth	360°
Vertical Beamwidth	55-60°
Max Power	50W
B. Material & Mechanical Characteristics
Connector Type	SMA connector
Cable Type	RG58 Cable
Dimension	Φ62*230mm
Weight	0.38Kg
Antenna material	Copper Rod
C. Environmental
Operation Temperature	- 40 ˚C ~ + 80 ˚C
Storage Temperature	- 40 ˚C ~ + 80 ˚C

2. Antenna - S Parameter Test Data

2.1 VSWR

Magnetic Mount Wifi Antenna 2.4GHz 2dBi RG58 Cable 30x223

2.2 Total Efficiency & Gain:

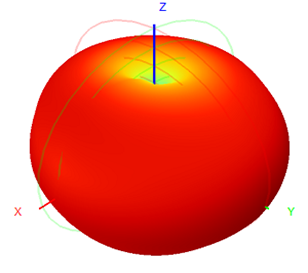

2.3 Radiation Pattern
