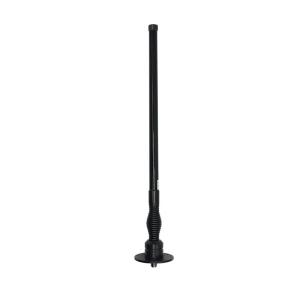

400-470M Frequency Omnidirectional Antenna 150W Flanged Vehicle Spring Damping FRP Antenna

Product Categories

Dongguan Leenz Electronics Co., Ltd

Trust Seal

Verified Supplier

Credit Check

Supplier Assessment

Contact Now

Name: 400470M Frequency Omnidirectional Antenna 150W Flanged Vehicle Spring Damping FRP Antenna
Brand: Leenz
Price: 1 USD

Brand Name : Leenz

Model Number : LZANT-10877-A

Certification : RoHs

Place of Origin : China

MOQ : 10

Payment Terms : T/T

Supply Ability : 100 per day

Delivery Time : 15 days

Frequency : 400-470MHz

VSWR : <2.0

Peak Gain : 2dBi

Impedance : 50

Contact Now

Customized 400-470M omnidirectional high-power 150W flanged vehicle low-frequency spring damping FRP waterproof antenna

1. Specification

A. Electrical Characteristics
Frequency	400-470MHz
Impedance	50 Ohm
S.W.R.	<2.0
Antenna Gain	2dBi
Efficiency	≈90%
Polarization	Linear
Horizontal Beamwidth	360°
Vertical Beamwidth	80±10°
Max Power	150W
B. Material & Mechanical Characteristics
Connector Type	N - Female
Dimension	Φ25*750mm
Colour	Army black
Weight	1.1Kg
Radome material	Fiberglass
C. Environmental
Operation Temperature	- 45 ˚C ~ + 85 ˚C
Storage Temperature	- 45 ˚C ~ + 85 ˚C
Rated Wind Velocity	36.9m/s
Lighting Protection	DC Ground

2. Antenna - S Parameter Test Data

2.1 VSWR

400-470M Frequency Omnidirectional Antenna 150W Flanged Vehicle Spring Damping FRP Antenna

2.2 Total Efficiency & Gain:

2.3 Radiation Pattern
