10 Dbi Omni Directional Antenna Fiberglass Antenna WIFI 5.8GHz 10-11dBi 60x600mm

Product Categories

Dongguan Leenz Electronics Co., Ltd

Trust Seal

Verified Supplier

Credit Check

Supplier Assessment

Contact Now

Name: 10 Dbi Omni Directional Antenna Fiberglass Antenna WIFI 58GHz 1011dBi 60x600mm
Brand: Leenz
Price: 1 USD

Brand Name : Leenz

Model Number : LZANT-10633-A

Certification : RoHs

Place of Origin : China

MOQ : 10

Payment Terms : T/T

Supply Ability : 5K per day

Delivery Time : 15 days

Frequency : 5150-5850MHz

VSWR : <2.0

Peak Gain : 10dBi/11dBi

Impedance : 50

Contact Now

Outdoor Waterproof Omnidirectional Antenna Fiberglass Antenna WIFI 5.8GHz 10-11dBi 60x600

1. Specification

A. Electrical Characteristics
Port	Port1	Port2
Frequency	5150-5850MHz	5150-5850MHz
S.W.R.	<2.0	<2.0
Efficiency	≈50%	≈53%
Antenna Gain	10dBi	11dBi
Polarization	Linear	Linear
Horizontal Beamwidth	130-360°	50-210°
Vertical Beamwidth	6-8°	6-7°
Impedance	50 Ohm	50 Ohm
Max Power	50W	50W
B. Material & Mechanical Characteristics
Connector Type	N connector
Cable Type	RG303 Cable
Dimension	Φ60*600mm
Weight	0.6Kg
Radome material	Fiberglass
C. Environmental
Operation Temperature	- 40 ˚C ~ + 80 ˚C
Storage Temperature	- 40 ˚C ~ + 80 ˚C
Rated Wind Velocity	36.9m/s
Lighting Protection	DC Ground

2. Antenna - S Parameter Test Data
2.1 VSWR

Port1

10 Dbi Omni Directional Antenna Fiberglass Antenna WIFI 5.8GHz 10-11dBi 60x600mm

Port2

10 Dbi Omni Directional Antenna Fiberglass Antenna WIFI 5.8GHz 10-11dBi 60x600mm

2.2 Total Efficiency & Gain:

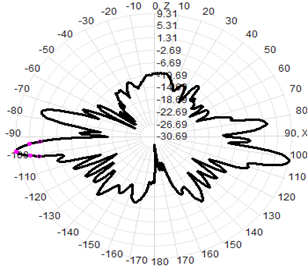

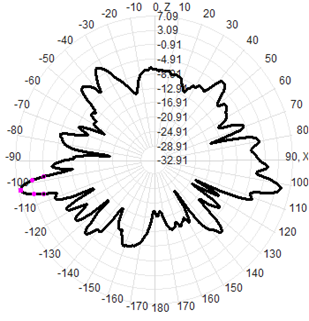

2.3 Radiation Pattern

Product Tags:

Fiberglass Antenna 60x600mm
