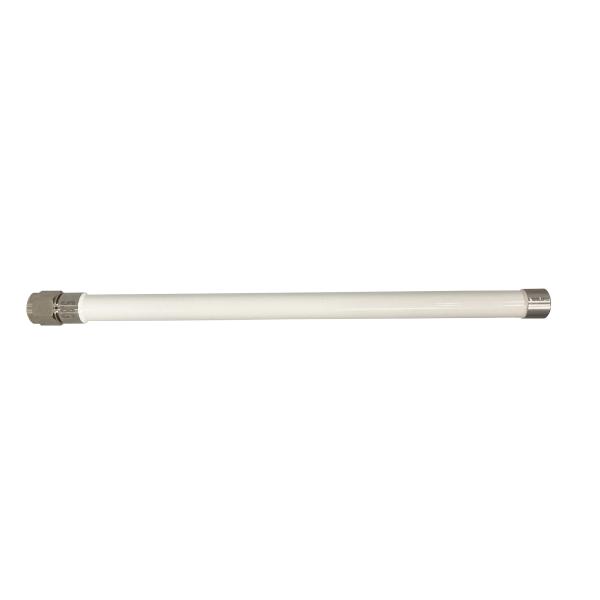

Wifi Omnidirectional Antenna 9.5dBi Fiberglass Antenna WIFI 5.8GHz 16x300mm

Product Categories

Dongguan Leenz Electronics Co., Ltd

Trust Seal

Verified Supplier

Credit Check

Supplier Assessment

Contact Now

Name: Wifi Omnidirectional Antenna 95dBi Fiberglass Antenna WIFI 58GHz 16x300mm
Brand: Leenz
Price: 1 USD

Brand Name : Leenz

Model Number : LZANT-10411-A

Certification : RoHs

Place of Origin : China

MOQ : 10

Payment Terms : T/T

Supply Ability : 5K per day

Delivery Time : 15 days

Frequency : 5150-5850MHz

VSWR : <2.0

Peak Gain : 9.5dBi

Impedance : 50

Contact Now

Outdoor Waterproof Omnidirectional Antenna Fiberglass Antenna WIFI 5.8GHz 9.5dBi 16x300

1. Specification

A. Electrical Characteristics
Frequency	5150-5850MHz
Impedance	50 Ohm
S.W.R.	<2.0
Antenna Gain	9.5dBi
Efficiency	≈70%
Polarization	Linear
Horizontal Beamwidth	360°
Vertical Beamwidth	15°±5°
Max Power	50W
B. Material & Mechanical Characteristics
Connector Type	N connector
Dimension	Φ16*300mm
Weight	0.097Kg
Radome material	Fiberglass
C. Environmental
Operation Temperature	- 40 ˚C ~ + 80 ˚C
Storage Temperature	- 40 ˚C ~ + 80 ˚C
Rated Wind Velocity	36.9m/s
Lighting Protection	DC Ground

2. Antenna - S Parameter Test Data
2.1 VSWR

Wifi Omnidirectional Antenna 9.5dBi Fiberglass Antenna WIFI 5.8GHz 16x300mm

2.2 Total Efficiency & Gain:

2.3 Radiation Pattern
