2.4GHz 5.8GHz Dual Band Directional Wifi Antenna Outdoor 11dBi 140x120x25

Product Categories

Dongguan Leenz Electronics Co., Ltd

Trust Seal

Verified Supplier

Credit Check

Supplier Assessment

Contact Now

Name: 24GHz 58GHz Dual Band Directional Wifi Antenna Outdoor 11dBi 140x120x25
Brand: Leenz
Price: 1 USD

Brand Name : Leenz

Model Number : LZANT-10109-A

Certification : RoHs

Place of Origin : China

MOQ : 10

Payment Terms : T/T

Supply Ability : 5K per day

Delivery Time : 15 days

Frequency : 2400-2500MHz; 5100-5850MHz

VSWR : <2.0

Peak Gain : 9-12Bi

Impedance : 50

Contact Now

1. Specification

Electrical Characteristics
Frequency	2400-2500MHz	5150-5850MHz
S.W.R.	<2.0	<2.0
Antenna Gain	9dBi	12dBi
Polarization	Vertical	Vertical
Horizontal Beamwidth	74-77°	43-60°
Vertical Beamwidth	43-44°	19-25°
F/B	>18dB	>17dB
Impedance	50Ohm	50Ohm
Max. Power	50W	50W
Material & Mechanical Characteristics
Connector Type	N connector
Dimension	14012025mm
Radome material	ABS
Weight	0.30Kg
Environmental
Operation Temperature	- 40 ˚C ~ + 85 ˚C
Storage Temperature	- 40 ˚C ~ + 85 ˚C
Operation Humidity	＜95%
Rated Wind Velocity	36.9m/s

2. Antenna - S Parameter Test Data

2.1 VSWR

2.4GHz 5.8GHz Dual Band Directional Wifi Antenna Outdoor 11dBi 140x120x25

2.2 Total Efficiency & Gain:

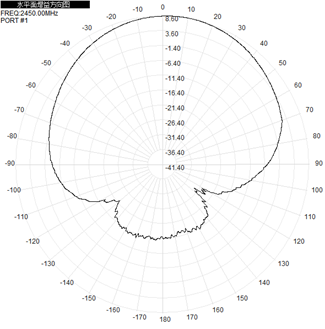

2.3 Radiation Pattern

Product Tags:

Dual Band Directional Wifi Antenna Outdoor
