Waterproof LPDA Outdoor Directional Antenna 400-7000MHz 550x350x80MM

Product Categories

Dongguan Leenz Electronics Co., Ltd

Trust Seal

Verified Supplier

Credit Check

Supplier Assessment

Contact Now

Name: Waterproof LPDA Outdoor Directional Antenna 4007000MHz 550x350x80MM
Brand: Leenz
Price: 1 USD

Brand Name : Leenz

Model Number : LZANT-10867-A

Certification : RoHs

Place of Origin : China

MOQ : 10

Payment Terms : T/T

Supply Ability : 5K per day

Delivery Time : 15 days

Frequency : 400-7000MHz

VSWR : <2.2

Peak Gain : 7dBi

Impedance : 50

Contact Now

1. Specification

A. Electrical Characteristics
Frequency	400-7000MHz
S.W.R.	<=2.2
Antenna Gain	7dBi
Efficiency	58%
Polarization	Vertical
Horizontal Beamwidth	40-360°
Vertical Beamwidth	20-80°
Impedance	50Ohm
Max. Power	50W
B. Material & Mechanical Characteristics
Connector Type	N connector
Cable Type	50-3 Type Cable
Dimension	55035080mm
Mount Pole	∅30-∅50
Weight	2.4Kg
C. Environmental
Operation Temperature	- 40 ˚C ~ + 85 ˚C
Storage Temperature	- 40 ˚C ~ + 85 ˚C
Operation Humidity	＜95%
Rated Wind Velocity	36.9m/s

2. Antenna - S Parameter Test Data

2.1 VSWR

Waterproof LPDA Outdoor Directional Antenna 400-7000MHz 550x350x80MM

2.2 Total Efficiency & Gain:

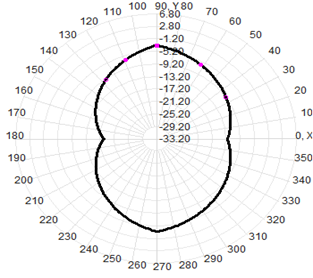

2.3 Radiation Pattern

Product Tags:

Waterproof LPDA Outdoor Directional Antenna
