Name: Directive Systems Antennas IP67 Flat Panel Antenna 900M 7dBi 210x180x45mm
Brand: Leenz
Price: 1 USD

Brand Name : Leenz

Model Number : LZANT-10577-A

Certification : RoHs

Place of Origin : China

MOQ : 10

Payment Terms : T/T

Supply Ability : 5K per day

Delivery Time : 15 days

Frequency : 900+/-5MHz

VSWR : <2.0

Peak Gain : 7dBi

Impedance : 50

Contact Now

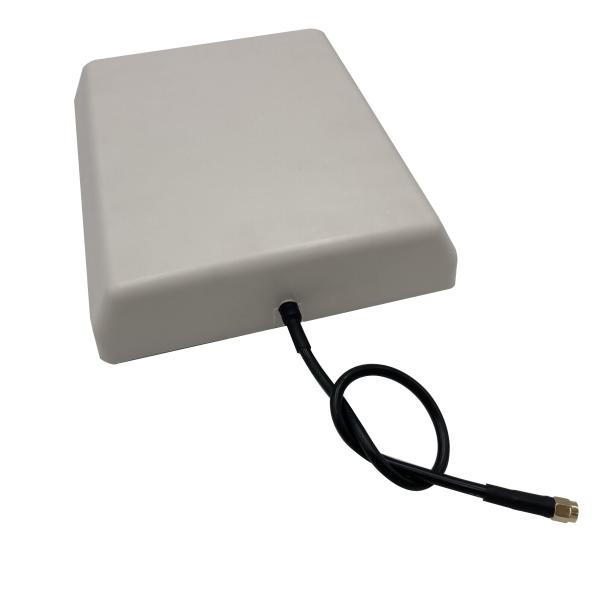

Outdoor Waterproof Directional Antenna IP67 Flat Panel antenna 900M 7dBi 210x180x45mm

1. Specification

A. Electrical Characteristics
Frequency	900+/-5MHz
S.W.R.	<2.0
Antenna Gain	7dBi
Polarization	Vertical
Horizontal Beamwidth	87°
Vertical Beamwidth	59°
F/B	>13dB
Impedance	50Ohm
Max. Power	50W
B. Material & Mechanical Characteristics
Cable Type	RG58U Cable, length 300mm
Connector Type	SMA connector
Dimension	21018045mm
Radome material	ABS
Weight	0.65Kg
C. Environmental
Operation Temperature	- 40 ˚C ~ + 85 ˚C
Storage Temperature	- 40 ˚C ~ + 85 ˚C
Operation Humidity	＜95%
Rated Wind Velocity	36.9m/s

2. Antenna - S Parameter Test Data
2.1 VSWR

Directive Systems Antennas IP67 Flat Panel Antenna 900M 7dBi 210x180x45mm

2.2 Total Efficiency & Gain:

2.3 Radiation Pattern
