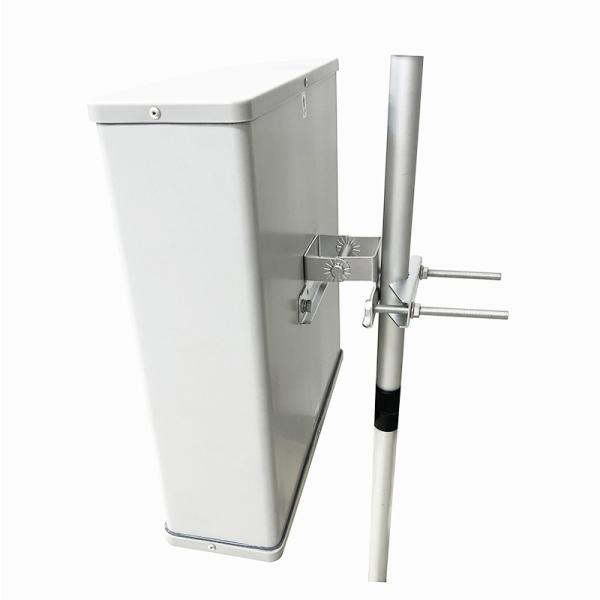

N Female LORA 470-510M490M Circular Polarization Outdoor 7dbi Gateway Directional Base Station Plate Waterproof Antenna

Name: N Female LORA 470510M490M Circular Polarization Outdoor 7dbi Gateway Directional Base Station Plate Waterproof Antenna
Brand: Leenz
Price: 1 USD

China N Female LORA 470-510M490M Circular Polarization Outdoor 7dbi Gateway Directional Base Station Plate Waterproof Antenna factory

Brand Name : Leenz

Model Number : LZANT-10836-A

Certification : RoHs

Place of Origin : China

MOQ : 10

Payment Terms : T/T

Supply Ability : 5K per day

Delivery Time : 15 days

Frequency : 470-510MHz

VSWR : <2.0

Peak Gain : 7dBi

Impedance : 50

Contact Now

1. Specification

A. Electrical Characteristics
Frequency	470-510MHz
S.W.R.	<2.0
Antenna Gain	7dBi
Polarization	DHCP
Horizontal Beamwidth	90-97°
Vertical Beamwidth	66-68°
F/B	>12dB
Impedance	50Ohm
Max. Power	100W
B. Material & Mechanical Characteristics
Connector Type	N connector
Dimension	420410130mm
Radome material	UPVC
Weight	6.0Kg
C. Environmental
Operation Temperature	- 40 ˚C ~ + 85 ˚C
Storage Temperature	- 40 ˚C ~ + 85 ˚C
Operation Humidity	＜95%
Rated Wind Velocity	60m/s

2. Antenna - S Parameter Test Data
2.1 VSWR
N Female LORA 470-510M490M Circular Polarization Outdoor 7dbi Gateway Directional Base Station Plate Waterproof Antenna

2.2 Total Efficiency & Gain:

Frequency(MHz)	Gain(dBi)
470	7.2
475	7.2
480	7.2
485	7.3
490	7.3
495	7.3
500	7.0
505	7.1
510	7.0

2.3 Radiation Pattern

Port1	2D-Horizontal	2D-Vertical	Horizontal & Vertical
470MHz
490MHz
510MHz
