N Female 1650-1750M 16dbi Single Polarized Directional Antenna

Product Categories

Dongguan Leenz Electronics Co., Ltd

Trust Seal

Verified Supplier

Credit Check

Supplier Assessment

Contact Now

Name: N Female 16501750M 16dbi Single Polarized Directional Antenna
Brand: Leenz
Price: 1 USD

Brand Name : Leenz

Model Number : LZANT-10967-A

Certification : RoHs

Place of Origin : China

MOQ : 10

Payment Terms : T/T

Supply Ability : 5K per day

Delivery Time : 15 days

Frequency : 1650-1750MHz

VSWR : <2.0

Peak Gain : 16dBi

Impedance : 50

Contact Now

1. Specification

A. Electrical Characteristics
Frequency	1015-1215MHz
S.W.R.	<= 2.0
Antenna Gain	16dBi
Polarization	Vertical
Horizontal Beamwidth	25±5°
Vertical Beamwidth	25±5°
F/B	>30dB
Impedance	50Ohm
Max. Power	50W
B. Material & Mechanical Characteristics
Connector Type	N Female connector
Dimension	45045040mm
Radome material	ABS
Weight	3.2Kg
C. Environmental
Operation Temperature	- 40 ˚C ~ + 85 ˚C
Storage Temperature	- 40 ˚C ~ + 85 ˚C
Operation Humidity	＜95%
Rated Wind Velocity	36.9m/s

2. Antenna - S Parameter Test Data

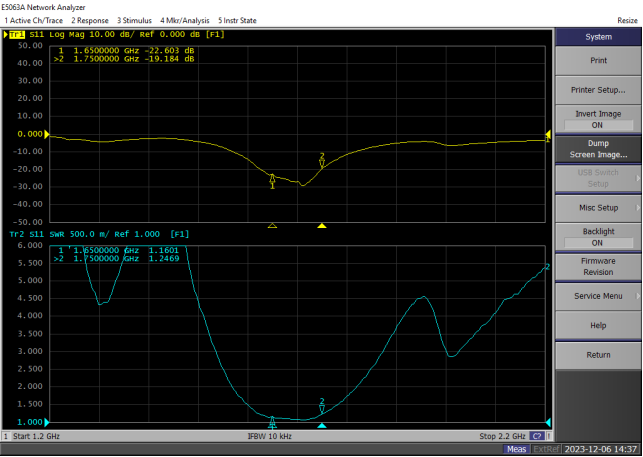

2.1 VSWR
N Female 1650-1750M 16dbi Single Polarized Directional Antenna

2.2 Total Efficiency & Gain:

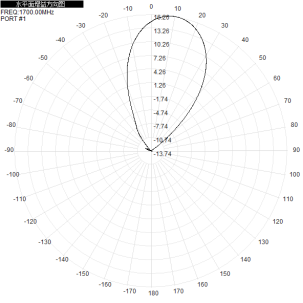

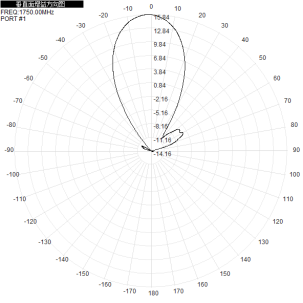

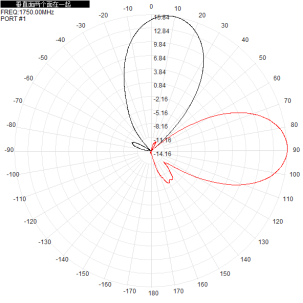

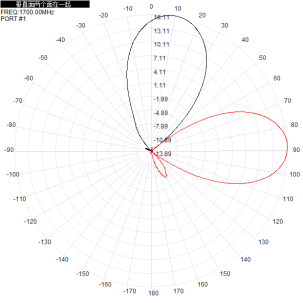

2.3 Radiation Pattern

Product Tags:

16dbi Directional Antenna
