850-950M 915M 902-930M 868 Mhz Directional Antenna NB LORA 14dbi Single-Polarization For UAV

Name: 850950M 915M 902930M 868 Mhz Directional Antenna NB LORA 14dbi SinglePolarization For UAV
Brand: Leenz
Price: 1 USD

China 850-950M 915M 902-930M 868 Mhz Directional Antenna NB LORA 14dbi Single-Polarization For UAV factory

Brand Name : Leenz

Model Number : LZANT-10934-A

Certification : RoHs

Place of Origin : China

MOQ : 10

Payment Terms : T/T

Supply Ability : 5K per day

Delivery Time : 15 days

Frequency : 850-950MHz

VSWR : <2.0

Peak Gain : 14dBi

Impedance : 50

Contact Now

850-950M868M915M902-930M NB LORA 14dbi single-polarization directional antenna for UAV

1. Specification

A. Electrical Characteristics
Frequency	850-950MHz
S.W.R.	<= 2.0
Antenna Gain	14dBi
Polarization	V
Horizontal Beamwidth	45±5°
Vertical Beamwidth	40±5°
F/B	>19dB
Impedance	50Ohm
Max. Power	50W
B. Material & Mechanical Characteristics
Connector Type	N Female connector
Dimension	45045040mm
Radome material	ABS
Weight	3.4Kg
C. Environmental
Operation Temperature	- 40 ˚C ~ + 85 ˚C
Storage Temperature	- 40 ˚C ~ + 85 ˚C
Operation Humidity	＜95%
Rated Wind Velocity	36.9m/s

2. Antenna - S Parameter Test Data
2.1 VSWR
850-950M 915M 902-930M 868 Mhz Directional Antenna NB LORA 14dbi Single-Polarization For UAV

2.2 Total Efficiency & Gain:

Frequency(MHz)	Gain(dBi)
850	11.0
860	10.9
870	11.9
880	11.3
890	13.1
900	14.1
910	14.5
920	14.3
930	13.8
940	13.6
950	13.7

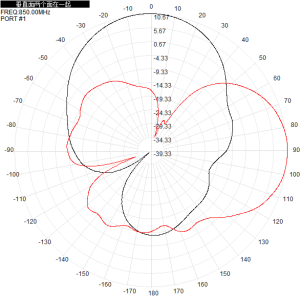

2.3 Radiation Pattern

Port1	2D-Horizontal	2D-Vertical	Horizontal & Vertical
850MHz
900MHz
950MHz
