2.4G 5.8G 2400-2500/5150-5850M Wifi6 8dBi Single Polarized Wall Mounted Directional Antenna

Name: 24G 58G 2400250051505850M Wifi6 8dBi Single Polarized Wall Mounted Directional Antenna
Brand: Leenz
Price: 1 USD

China 2.4G 5.8G 2400-2500/5150-5850M Wifi6 8dBi Single Polarized Wall Mounted Directional Antenna factory

Brand Name : Leenz

Model Number : LZANT-10367-A

Certification : RoHs

Place of Origin : China

MOQ : 10

Payment Terms : T/T

Supply Ability : 5K per day

Delivery Time : 15 days

Frequency : 2400-2500/5150-5850MHz

VSWR : <2.0

Peak Gain : 8dBi

Impedance : 50

Contact Now

1. Specification

A. Electrical Characteristics
Frequency	2400-2500/5150-5850MHz
S.W.R.	<= 2.0
Antenna Gain	8dBi
Polarization	Vertical
Horizontal Beamwidth	90±10°
Vertical Beamwidth	70±10°
F/B	>13dB
Impedance	50Ohm
Max. Power	50W
B. Material & Mechanical Characteristics
Connector Type	RG303 L=50CM N Female connector
Dimension	10010025mm
Radome material	ABS
Weight	0.1Kg
C. Environmental
Operation Temperature	- 40 ˚C ~ + 85 ˚C
Storage Temperature	- 40 ˚C ~ + 85 ˚C
Operation Humidity	＜95%
Rated Wind Velocity	36.9m/s

2. Antenna - S Parameter Test Data
2.1 VSWR
2.4G 5.8G 2400-2500/5150-5850M Wifi6 8dBi Single Polarized Wall Mounted Directional Antenna

2.2 Total Efficiency & Gain:

Frequency(MHz)	Gain(dBi)
2400	6.6
2410	6.5
2420	6.5
2430	6.5
2440	6.6
2450	6.6
2460	6.6
2470	6.6
2480	6.5
2490	6.6
2500	6.6

5150	6.8
5200	6.4
5250	5.8
5300	5.9
5350	6.2
5400	6.3
5450	6.6
5500	6.2
5550	6.0
5600	5.9
5650	5.9
5700	6.2
5750	6.2
5800	6.3
5850	6.5

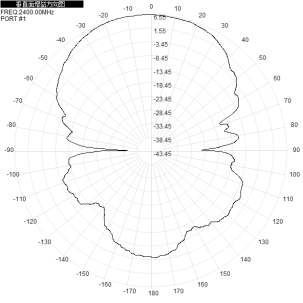

2.3 Radiation Pattern

Port1	2D-Horizontal	2D-Vertical	Horizontal & Vertical
2400MHz
2500MHz
5150MHz
5850MHz
