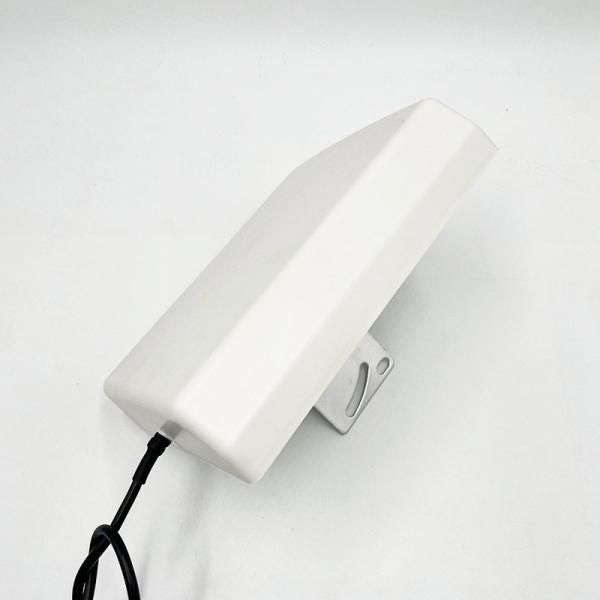

800 Mhz Directional Antenna 7dbi Single-Polarization Directive Antenna 210x180x45mm

Brand Name : Leenz

Model Number : LZANT-10576-A

Certification : RoHs

Place of Origin : China

MOQ : 10

Payment Terms : T/T

Supply Ability : 5K per day

Delivery Time : 15 days

Frequency : 800MHz

VSWR : <2.0

Peak Gain : 7dBi

Impedance : 50

Contact Now

800M 7dbi single-polarization directional antenna 210x180x45mm

Specification

A. Electrical Characteristics
Frequency 800MHz
S.W.R. <2.0
Antenna Gain 7dBi
Polarization Vertical
Horizontal Beamwidth 85°
Vertical Beamwidth 75°
F/B >15dB
Impedance 50Ohm
Max. Power 50W
B. Material & Mechanical Characteristics
Cable Type RG58U Cable, length 300mm
Connector Type SMA connector
Dimension 210*180*45mm
Radome material ABS
Weight 0.65Kg
C. Environmental
Operation Temperature - 40 ˚C ~ + 85 ˚C
Storage Temperature - 40 ˚C ~ + 85 ˚C
Operation Humidity ＜95%
Rated Wind Velocity 36.9m/s

2. Antenna - S Parameter Test Data
2.1 VSWR

800 Mhz Directional Antenna 7dbi Single-Polarization Directive Antenna 210x180x45mm



2.2 Total Efficiency & Gain:

Frequency(MHz) Gain(dBi)
795 6.9
796 7.0
797 7.0
798 7.0
799 7.1
800 7.1
801 7.1
802 7.1
803 7.1
804 7.1
805 7.1
2.3 Radiation Pattern
Port1 2D-Horizontal 2D-Vertical Horizontal & Vertical
795MHz 800 Mhz Directional Antenna 7dbi Single-Polarization Directive Antenna 210x180x45mm 800 Mhz Directional Antenna 7dbi Single-Polarization Directive Antenna 210x180x45mm 800 Mhz Directional Antenna 7dbi Single-Polarization Directive Antenna 210x180x45mm
800MHz 800 Mhz Directional Antenna 7dbi Single-Polarization Directive Antenna 210x180x45mm 800 Mhz Directional Antenna 7dbi Single-Polarization Directive Antenna 210x180x45mm 800 Mhz Directional Antenna 7dbi Single-Polarization Directive Antenna 210x180x45mm
805MHz 800 Mhz Directional Antenna 7dbi Single-Polarization Directive Antenna 210x180x45mm 800 Mhz Directional Antenna 7dbi Single-Polarization Directive Antenna 210x180x45mm 800 Mhz Directional Antenna 7dbi Single-Polarization Directive Antenna 210x180x45mm
