1.2 Ghz Yagi Antenna 1080-1360M 8dBi UAV Directional Antenna 210x180x45mm

Product Categories

Dongguan Leenz Electronics Co., Ltd

Trust Seal

Verified Supplier

Credit Check

Supplier Assessment

Contact Now

Name: 12 Ghz Yagi Antenna 10801360M 8dBi UAV Directional Antenna 210x180x45mm
Brand: Leenz
Price: 1 USD

Brand Name : Leenz

Model Number : LZANT-11101-A

Certification : RoHs

Place of Origin : China

MOQ : 10

Payment Terms : T/T

Supply Ability : 5K per day

Delivery Time : 15 days

Frequency : 1080-1360MHz

VSWR : <2.0

Peak Gain : 8dBi

Impedance : 50

Contact Now

1.2G1080-1360M 8dBi single-polarization UAV directional antenna 210x180x45mm

. Specification

A. Electrical Characteristics
Frequency	1080-1360MHz
S.W.R.	<2.0
Antenna Gain	8dBi
Polarization	Vertical
Horizontal Beamwidth	85±10°
Vertical Beamwidth	60±10°
F/B	>19dB
Impedance	50Ohm
Max. Power	50W
B. Material & Mechanical Characteristics
Cable Type	RG58U Cable, length 300mm
Connector Type	SMA Male
Dimension	21018045mm
Radome material	ABS
Weight	0.65Kg
C. Environmental
Operation Temperature	- 40 ˚C ~ + 85 ˚C
Storage Temperature	- 40 ˚C ~ + 85 ˚C
Operation Humidity	＜95%
Rated Wind Velocity	36.9m/s

2. Antenna - S Parameter Test Data
2.1 VSWR

1.2 Ghz Yagi Antenna 1080-1360M 8dBi UAV Directional Antenna 210x180x45mm

2.2 Total Efficiency & Gain:

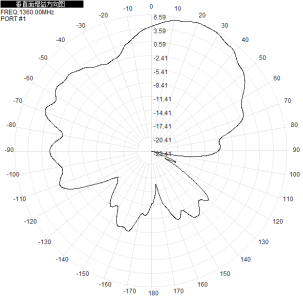

2.3 Radiation Pattern

Product Tags:
