Name: 800M 790820M SinglePolarized 5db Directional Antenna 210x180x45mm
Brand: Leenz
Price: 1 USD

Brand Name : Leenz

Model Number : LZANT-10893-A

Certification : RoHs

Place of Origin : China

MOQ : 10

Payment Terms : T/T

Supply Ability : 5K per day

Delivery Time : 15 days

Frequency : 790-820MHz

VSWR : <2.0

Peak Gain : 5dBi

Impedance : 50

Contact Now

800M790-820M Single-polarized 5dbi directional antenna 210x180x45mm

1. Specification

A. Electrical Characteristics
Frequency	790-820MHz
S.W.R.	<= 2.0
Antenna Gain	5dBi
Polarization	Vertical
Horizontal Beamwidth	75°
Vertical Beamwidth	75°
F/B	>13dB
Impedance	50Ohm
Max. Power	50W
B. Material & Mechanical Characteristics
Connector Type	N Female connector
Dimension	21018045mm
Radome material	ABS
Weight	0.7Kg
C. Environmental
Operation Temperature	- 40 ˚C ~ + 85 ˚C
Storage Temperature	- 40 ˚C ~ + 85 ˚C
Operation Humidity	＜95%
Rated Wind Velocity	36.9m/s

2. Antenna - S Parameter Test Data
2.1 VSWR

800M 790-820M Single-Polarized 5db Directional Antenna 210x180x45mm

2.2 Total Efficiency & Gain:

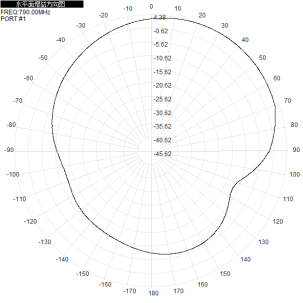

2.3 Radiation Pattern
