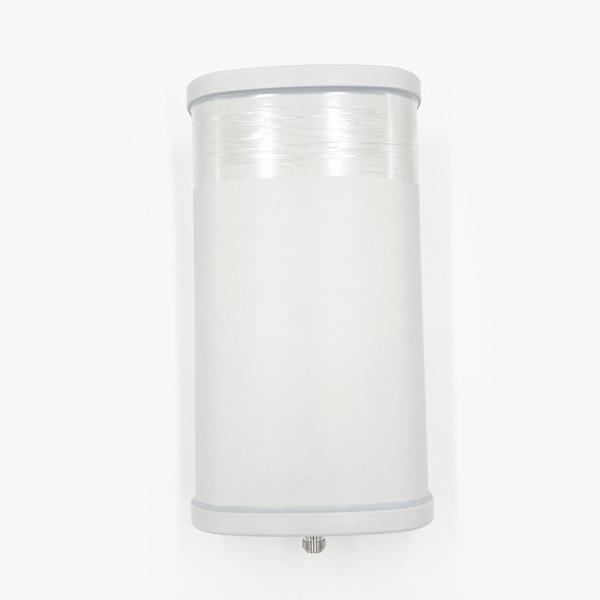

Diy Outdoor Directional Network Antenna 4G LTE 1710-2700M 12dbi 300x160x80mm

Product Categories

Dongguan Leenz Electronics Co., Ltd

Trust Seal

Verified Supplier

Credit Check

Supplier Assessment

Contact Now

Name: Diy Outdoor Directional Network Antenna 4G LTE 17102700M 12dbi 300x160x80mm
Brand: Leenz
Price: 1 USD

Brand Name : Leenz

Model Number : LZANT-10590-A

Certification : RoHs

Place of Origin : China

MOQ : 10

Payment Terms : T/T

Supply Ability : 5K per day

Delivery Time : 15 days

Frequency : 1710-2700MHz

VSWR : <2.0

Peak Gain : 12dBi

Impedance : 50

Contact Now

4G LTE 1710-2700M 12dbi single-polarization directional antenna 300x160x80mm

1. Specification

A. Electrical Characteristics
Frequency	1710-2700MHz
S.W.R.	<= 2.0
Antenna Gain	12dBi
Polarization	Vertical
Horizontal Beamwidth	75±5°
Vertical Beamwidth	30±5°
F/B	>18dB
Impedance	50Ohm
Max. Power	100W
B. Material & Mechanical Characteristics
Connector Type	N Female connector
Dimension	30016080mm
Radome material	UPVC
Weight	2.1Kg
C. Environmental
Operation Temperature	- 40 ˚C ~ + 85 ˚C
Storage Temperature	- 40 ˚C ~ + 85 ˚C
Operation Humidity	＜95%
Rated Wind Velocity	36.9m/s

2. Antenna - S Parameter Test Data
2.1 VSWR

Diy Outdoor Directional Network Antenna 4G LTE 1710-2700M 12dbi 300x160x80mm

2.2 Total Efficiency & Gain:

2.3 Radiation Pattern
