2.4ghz Directional Antenna Homemade 2.4G 2400-2500M Wifi 12dBi 210x180x45mm

Product Categories

Dongguan Leenz Electronics Co., Ltd

Trust Seal

Verified Supplier

Credit Check

Supplier Assessment

Contact Now

Name: 24ghz Directional Antenna Homemade 24G 24002500M Wifi 12dBi 210x180x45mm
Brand: Leenz
Price: 1 USD

Brand Name : Leenz

Model Number : LZANT-10504-A

Certification : RoHs

Place of Origin : China

MOQ : 10

Payment Terms : T/T

Supply Ability : 5K per day

Delivery Time : 15 days

Frequency : 2400-2500MHz

VSWR : <2.0

Peak Gain : 12dBi

Impedance : 50

Contact Now

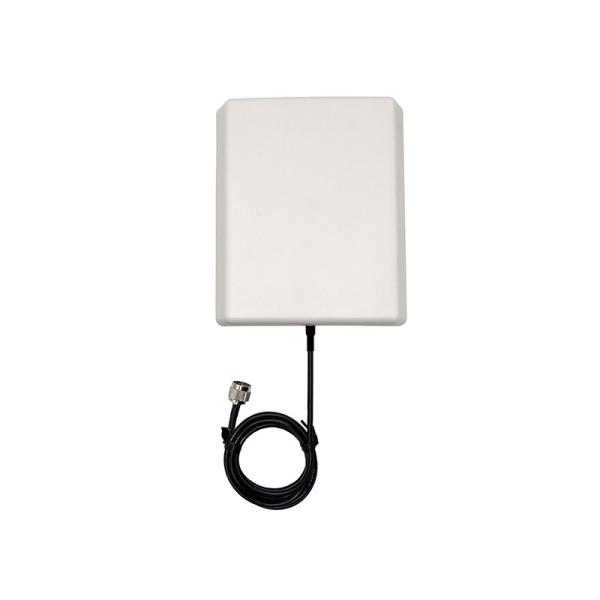

2.4G 2400-2500M wifi 12dBi single-polarized wall-mounted directional antenna 210x180x45mm

1. Specification

A. Electrical Characteristics
Frequency	2400-2500MHz
S.W.R.	<= 2.0
Antenna Gain	12dBi
Polarization	V
Horizontal Beamwidth	60±5°
Vertical Beamwidth	45±5°
F/B	>18dB
Impedance	50Ohm
Max. Power	50W
B. Material & Mechanical Characteristics
Connector Type	RG58U L=150cm N Female connector
Dimension	21018045mm
Radome material	ABS
Weight	0.35Kg
C. Environmental
Operation Temperature	- 40 ˚C ~ + 85 ˚C
Storage Temperature	- 40 ˚C ~ + 85 ˚C
Operation Humidity	＜95%
Rated Wind Velocity	36.9m/s

2. Antenna - S Parameter Test Data
2.1 VSWR
2.4ghz Directional Antenna Homemade 2.4G 2400-2500M Wifi 12dBi 210x180x45mm

2.2 Total Efficiency & Gain:

2.3 Radiation Pattern

Product Tags:

directional 2.4g antenna
