N Male 2.4G 2400-2500M Directional Antenna Wifi 15dBi 220x220x25mm

Product Categories

Dongguan Leenz Electronics Co., Ltd

Trust Seal

Verified Supplier

Credit Check

Supplier Assessment

Contact Now

Name: N Male 24G 24002500M Directional Antenna Wifi 15dBi 220x220x25mm
Brand: Leenz
Price: 1 USD

Brand Name : Leenz

Model Number : LZANT-10401-B

Certification : RoHs

Place of Origin : China

MOQ : 10

Payment Terms : T/T

Supply Ability : 5K per day

Delivery Time : 15 days

Frequency : 2400-2500MHz

VSWR : <2.0

Peak Gain : 15dBi

Impedance : 50

Contact Now

N Male 2.4G 2400-2500M wifi 15dBi single-polarized wall-mounted directional antenna 220x220x25mm

1. Specification

A. Electrical Characteristics
Frequency	2400-2500MHz
S.W.R.	<= 2.0
Antenna Gain	15dBi
Polarization	V
Horizontal Beamwidth	45±5°
Vertical Beamwidth	35±5°
F/B	>22dB
Impedance	50Ohm
Max. Power	50W
B. Material & Mechanical Characteristics
Connector Type	N-J connector
Dimension	22022025mm
Radome material	ABS
Weight	1Kg
C. Environmental
Operation Temperature	- 40 ˚C ~ + 85 ˚C
Storage Temperature	- 40 ˚C ~ + 85 ˚C
Operation Humidity	＜95%
Rated Wind Velocity	36.9m/s

2. Antenna - S Parameter Test Data
2.1 VSWR
N Male 2.4G 2400-2500M Directional Antenna Wifi 15dBi 220x220x25mm

2.2 Total Efficiency & Gain:

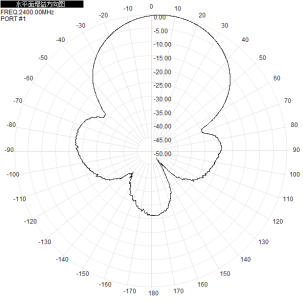

2.3 Radiation Pattern

Product Tags:

directional antenna 220x220x25mm
