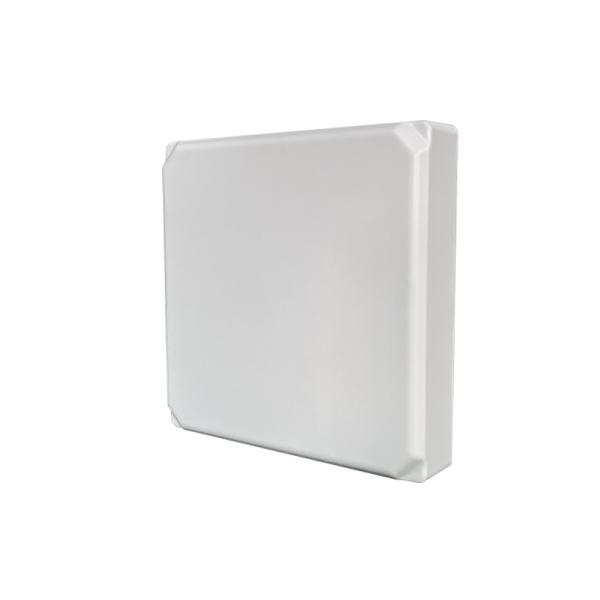

2*N Female 5.8G 5150-5850M Wifi 18dBi Dual Polarized Directional Antenna

Brand Name : Leenz

Model Number : LZANT-10540-A

Certification : RoHs

Place of Origin : China

MOQ : 10

Payment Terms : T/T

Supply Ability : 5K per day

Delivery Time : 15 days

Frequency : 5150-5850MHz

VSWR : <2.0

Peak Gain : 18dBi

Impedance : 50

Contact Now

2*N female 5.8G 5150-5850M wifi 18dBi dual-polarized directional antenna

1. Specification

A. Electrical Characteristics
Frequency 5150-5850MHz
S.W.R. <= 2.0
Antenna Gain 18dBi
Polarization H+V
Horizontal Beamwidth 18±5°
Vertical Beamwidth 18±5°
F/B >25dB
Impedance 50Ohm
Max. Power 50W
B. Material & Mechanical Characteristics
Connector Type 2*N Female connector
Dimension

190*190*40mm

Radome material ABS
Weight 0.5Kg
C. Environmental
Operation Temperature - 40 ˚C ~ + 85 ˚C
Storage Temperature - 40 ˚C ~ + 85 ˚C
Operation Humidity <95%
Rated Wind Velocity 36.9m/s

2. Antenna - S Parameter Test Data
2.1 VSWR
2*N Female 5.8G 5150-5850M Wifi 18dBi Dual Polarized Directional Antenna

2.2 Total Efficiency & Gain:

Port 1(水平极化) Port 2(垂直极化)
Frequency(MHz) Gain(dBi) Frequency(MHz) Gain(dBi)
5150 18.551 5150 18.248
5200 18.463 5200 18.847
5250 18.333 5250 19.129
5300 18.18 5300 19.285
5350 18.461 5350 19.575
5400 18.613 5400 19.448
5450 18.698 5450 19.491
5500 18.629 5500 19.456
5550 18.711 5550 19.299
5600 18.643 5600 19.377
5650 18.87 5650 19.468
5700 18.936 5700 19.428
5750 19.218 5750 19.554
5800 19.071 5800 19.481
5850 19.035 5850 19.178
2.3 Radiation Pattern
Port1 2D-Horizontal 2D-Vertical Horizontal & Vertical
5150MHz 2*N Female 5.8G 5150-5850M Wifi 18dBi Dual Polarized Directional Antenna 2*N Female 5.8G 5150-5850M Wifi 18dBi Dual Polarized Directional Antenna 2*N Female 5.8G 5150-5850M Wifi 18dBi Dual Polarized Directional Antenna
5500MHz 2*N Female 5.8G 5150-5850M Wifi 18dBi Dual Polarized Directional Antenna 2*N Female 5.8G 5150-5850M Wifi 18dBi Dual Polarized Directional Antenna 2*N Female 5.8G 5150-5850M Wifi 18dBi Dual Polarized Directional Antenna
5850MHz 2*N Female 5.8G 5150-5850M Wifi 18dBi Dual Polarized Directional Antenna 2*N Female 5.8G 5150-5850M Wifi 18dBi Dual Polarized Directional Antenna 2*N Female 5.8G 5150-5850M Wifi 18dBi Dual Polarized Directional Antenna
