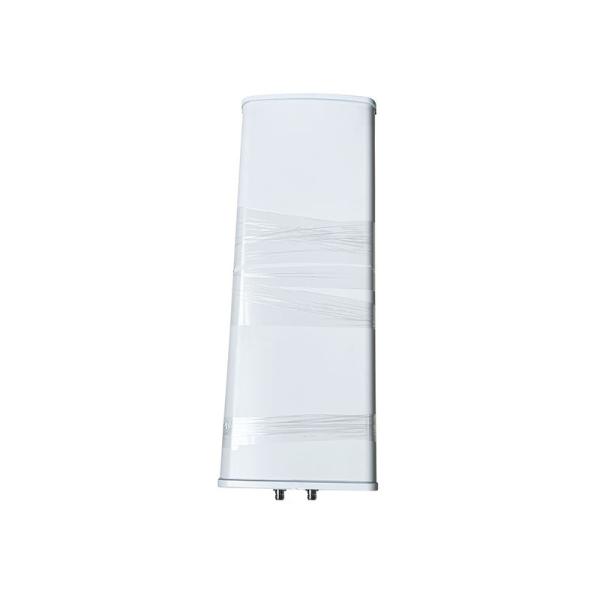

4G LTE 1710-2700M 18dbi Dual-Polarization Directional Antenna 800x280x80mm

Brand Name : Leenz

Model Number : LZANT-10498-A

Certification : RoHs

Place of Origin : China

MOQ : 10

Payment Terms : T/T

Supply Ability : 5K per day

Delivery Time : 15 days

Frequency : 1710-2700MHz

VSWR : <2.0

Peak Gain : 18dBi

Impedance : 50

Contact Now

4G LTE 1710-2700M 18dbi dual-polarization directional antenna 800x280x80mm
1. Specification

A. Electrical Characteristics
Frequency1710-2700MHz
S.W.R.<= 2.0
Antenna Gain18dBi
Polarization±45
Horizontal Beamwidth40±10°
Vertical Beamwidth40±10°
F/B>24dB
Impedance50Ohm
Max. Power100W
B. Material & Mechanical Characteristics
Connector Type2*N Female connector
Dimension800*-280*80mm
Radome materialUPVC
Weight6.5Kg
C. Environmental
Operation Temperature- 40 ˚C ~ + 85 ˚C
Storage Temperature- 40 ˚C ~ + 85 ˚C
Operation Humidity＜95%
Rated Wind Velocity36.9m/s

2. Antenna - S Parameter Test Data
2.1 VSWR

4G LTE 1710-2700M 18dbi Dual-Polarization Directional Antenna 800x280x80mm



2.2 Total Efficiency & Gain:

Port 1 +45° Port 2 -45°
Frequency(MHz)Gain(dBi)Frequency(MHz)Gain(dBi)
171017.083171017.13
174017.248174017.153
177017.206177016.915
180017.123180017.243
183017.209183017.341
186017.639186017.468
189017.787189017.75
192017.728192017.642
195017.748195017.698
198017.964198017.86
201018.109201018.175
204018.089204018.16
207018.448207018.187
210018.715210018.478
213018.586213018.586
216018.617216018.68
219018.826219018.69
222018.812222018.758
225018.929225018.913
228019.018228019.065
231019.044231019.051
234019.133234019.272
237018.898237019.27
240018.869240019.108
243019.091243018.856
246019.166246019.034
249019.159249019.293
252019.455252019.527
255019.698255019.668
258019.641258019.657
261019.699261019.933
264019.665264019.754
267019.73267019.675
270019.456270019.506
2.3 Radiation Pattern
Port12D-Horizontal2D-VerticalHorizontal & Vertical
1710MHz4G LTE 1710-2700M 18dbi Dual-Polarization Directional Antenna 800x280x80mm4G LTE 1710-2700M 18dbi Dual-Polarization Directional Antenna 800x280x80mm4G LTE 1710-2700M 18dbi Dual-Polarization Directional Antenna 800x280x80mm
2200MHz4G LTE 1710-2700M 18dbi Dual-Polarization Directional Antenna 800x280x80mm4G LTE 1710-2700M 18dbi Dual-Polarization Directional Antenna 800x280x80mm4G LTE 1710-2700M 18dbi Dual-Polarization Directional Antenna 800x280x80mm
2700MHz4G LTE 1710-2700M 18dbi Dual-Polarization Directional Antenna 800x280x80mm4G LTE 1710-2700M 18dbi Dual-Polarization Directional Antenna 800x280x80mm4G LTE 1710-2700M 18dbi Dual-Polarization Directional Antenna 800x280x80mm
