4G LTE Sma External Antenna 3-5dBi SMA Connector UV Resistant 13x206mm

Product Categories

Dongguan Leenz Electronics Co., Ltd

Trust Seal

Verified Supplier

Credit Check

Supplier Assessment

Contact Now

Name: 4G LTE Sma External Antenna 35dBi SMA Connector UV Resistant 13x206mm
Brand: Leenz
Price: 1 USD

Brand Name : Leenz

Model Number : LZANT-10488-A

Certification : RoHs

Place of Origin : China

MOQ : 10

Payment Terms : T/T

Supply Ability : 5K per day

Delivery Time : 15 days

Frequency : 700-960MHz; 1710-2700MHz

VSWR : <3.5/<2.5

Peak Gain : 3-5dBi

Impedance : 50

Contact Now

Indoor Antenna External Antenna 4G LTE Antenna 3-5dBi SMA Connector UV Resistant 13x206
1. Specification

A. Electrical Characteristics
Frequency	700-960MHz	1710-2700MHz
S.W.R.	<= 3.5	<= 2.5
Antenna Gain	3dBi	5dBi
Efficiency	≈50%	≈60%
Polarization	Linear	Linear
Impedance	50 Ohm	50 Ohm
B. Material & Mechanical Characteristics
Connector Type	SMA Connector
Dimension	¢13*206mm
Color	Light Black
Weight	0.05Kg
C. Environmental
Operation Temperature	- 40 ˚C ~ + 80 ˚C
Storage Temperature	- 40 ˚C ~ + 80 ˚C

2. Antenna - S Parameter Test Data
2.1 VSWR
4G LTE Sma External Antenna 3-5dBi SMA Connector UV Resistant 13x206mm

2.2 Total Efficiency & Gain

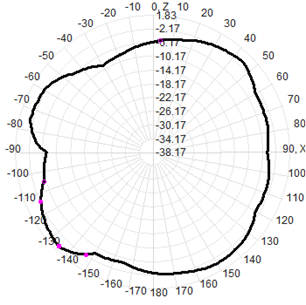

2.2 Radiation Pattern
