Name: Indoor External Antenna Gooseneck 2201700MHz TNC Connector 20x450mm
Brand: Leenz
Price: 1 USD

Brand Name : Leenz

Model Number : LZANT-10784-A

Certification : RoHs

Place of Origin : China

MOQ : 10

Payment Terms : T/T

Supply Ability : 5K per day

Delivery Time : 15 days

Frequency : 220-1700MHZ

VSWR : <2.0

Peak Gain : 0dBi

Impedance : 50

Contact Now

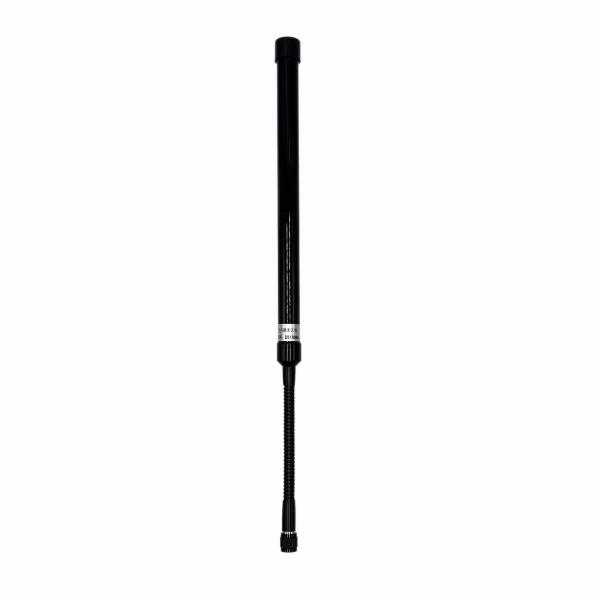

Indoor Antenna External Antenna Gooseneck 220-1700MHz TNC connector 20x450mm

1. Specification

A. Electrical Characteristics
Frequency	220-1700MHz
Impedance	50 Ohm
S.W.R.	<2.0
Gain	0dBi
Efficiency	≈79%
Polarization	Linear
Horizontal Beamwidth	360°
Vertical Beamwidth	14-100°
Max Power	50W
B. Material & Mechanical Characteristics
Connector Type	TNC connector
Dimension	Φ20*450mm
Weight	0.173Kg
Radome Materials	Fiberglass
C. Environmental
Operation Temperature	- 40 ˚C ~ + 80 ˚C
Storage Temperature	- 40 ˚C ~ + 80 ˚C

2. Antenna - S Parameter Test Data
2.1 VSWR
Indoor External Antenna Gooseneck 220-1700MHz TNC Connector 20x450mm

2.2 Total Efficiency & Gain

2.3 Radiation Pattern
