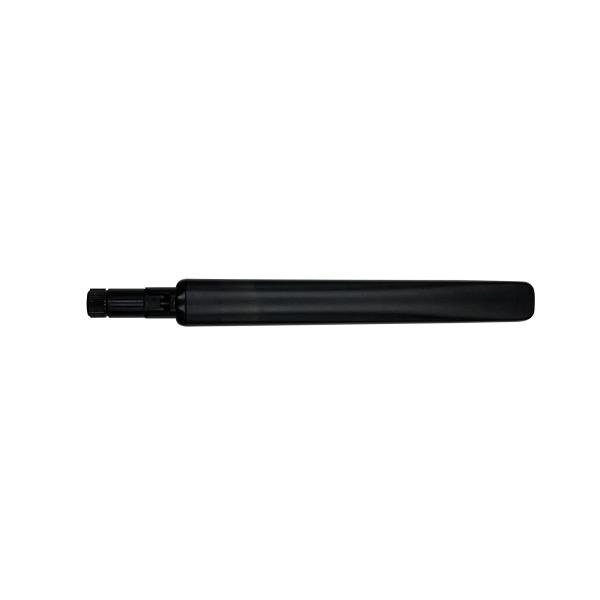

2.4 Ghz External Antenna WIFI Dual Band Antenna 2.4G/5.8G 7dBi 13x200mm

  • 1
  • 2

Brand Name : Leenz

Model Number : LZANT-10466-A

Certification : RoHs

Place of Origin : China

MOQ : 10

Payment Terms : T/T

Supply Ability : 5K per day

Delivery Time : 15 days

Frequency : 2400-2500MHz; 5150-5850MHz

VSWR : <2.3

Peak Gain : 7dBi

Impedance : 50

Contact Now

Indoor Antenna External Antenna WIFI Dual Band Antenna 2.4G/5.8G 7dBi 13x200

1. Specification

A. Electrical Characteristics
Frequency 2400-2500MHz 5150-5850MHz
Impedance 50 Ohm 50 Ohm
S.W.R. <2.3 <2.0
Gain 5dBi 7dBi
Efficiency ≈72% ≈67%
Polarization Linear Linear
Max Power 50W 50W
B. Material & Mechanical Characteristics
Connector Type RP-SMA connector
Dimension Φ13*200mm
Weight 0.025Kg
Antenna material PCB
C. Environmental
Operation Temperature - 40 ˚C ~ + 80 ˚C
Storage Temperature - 40 ˚C ~ + 80 ˚C

2. Antenna - S Parameter Test Data

2.1 VSWR

2.4 Ghz External Antenna WIFI Dual Band Antenna 2.4G/5.8G 7dBi 13x200mm

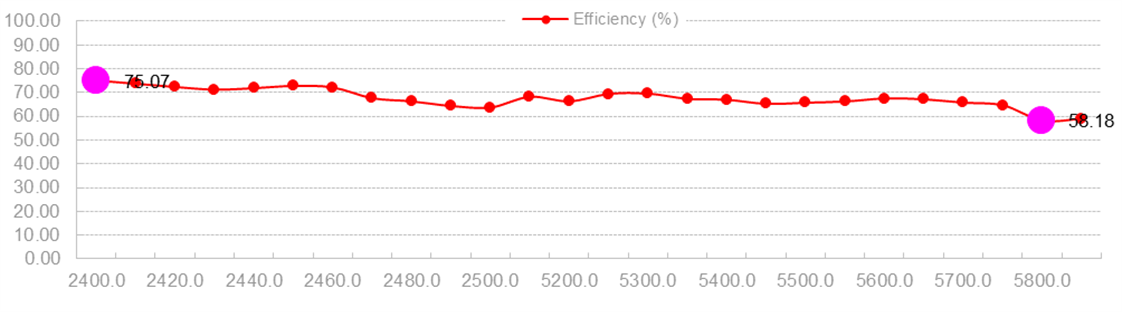

2.2 Total Efficiency & Gain

Frequency (MHz) 2400.0 2410.0 2420.0 2430.0 2440.0 2450.0 2460.0 2470.0 2480.0 2490.0 2500.0
Gain (dBi) 4.73 4.67 4.56 4.53 4.56 4.59 4.49 4.13 4.14 4.16 4.09
Efficiency (%) 75.07 73.71 72.37 71.22 71.82 72.79 72.14 67.65 69.41 72.22 71.48
Frequency (MHz) 5150 5200 5250 5300 5350 5400 5450 5500 5550 5600 5650 5700 5750 5800 5850
Gain (dBi) 6.12 6.19 6.62 6.73 6.65 6.70 6.37 6.28 6.20 6.10 6.10 6.05 6.14 6.05 6.02
Efficiency (%) 68.23 66.31 69.41 69.57 67.34 66.96 65.26 65.73 66.26 67.51 67.15 65.74 64.65 58.18 59.01
2.4 Ghz External Antenna WIFI Dual Band Antenna 2.4G/5.8G 7dBi 13x200mm

2.2 Radiation Pattern

3D 2D-Horizontal 2D-Vertical
2400MHz 2.4 Ghz External Antenna WIFI Dual Band Antenna 2.4G/5.8G 7dBi 13x200mm 2.4 Ghz External Antenna WIFI Dual Band Antenna 2.4G/5.8G 7dBi 13x200mm 2.4 Ghz External Antenna WIFI Dual Band Antenna 2.4G/5.8G 7dBi 13x200mm
2450MHz 2.4 Ghz External Antenna WIFI Dual Band Antenna 2.4G/5.8G 7dBi 13x200mm 2.4 Ghz External Antenna WIFI Dual Band Antenna 2.4G/5.8G 7dBi 13x200mm 2.4 Ghz External Antenna WIFI Dual Band Antenna 2.4G/5.8G 7dBi 13x200mm
2500MHz 2.4 Ghz External Antenna WIFI Dual Band Antenna 2.4G/5.8G 7dBi 13x200mm 2.4 Ghz External Antenna WIFI Dual Band Antenna 2.4G/5.8G 7dBi 13x200mm 2.4 Ghz External Antenna WIFI Dual Band Antenna 2.4G/5.8G 7dBi 13x200mm
3D 2D-Horizontal 2D-Vertical
5150MHz 2.4 Ghz External Antenna WIFI Dual Band Antenna 2.4G/5.8G 7dBi 13x200mm 2.4 Ghz External Antenna WIFI Dual Band Antenna 2.4G/5.8G 7dBi 13x200mm 2.4 Ghz External Antenna WIFI Dual Band Antenna 2.4G/5.8G 7dBi 13x200mm
5500MHz 2.4 Ghz External Antenna WIFI Dual Band Antenna 2.4G/5.8G 7dBi 13x200mm 2.4 Ghz External Antenna WIFI Dual Band Antenna 2.4G/5.8G 7dBi 13x200mm 2.4 Ghz External Antenna WIFI Dual Band Antenna 2.4G/5.8G 7dBi 13x200mm
5850MHz 2.4 Ghz External Antenna WIFI Dual Band Antenna 2.4G/5.8G 7dBi 13x200mm 2.4 Ghz External Antenna WIFI Dual Band Antenna 2.4G/5.8G 7dBi 13x200mm 2.4 Ghz External Antenna WIFI Dual Band Antenna 2.4G/5.8G 7dBi 13x200mm
