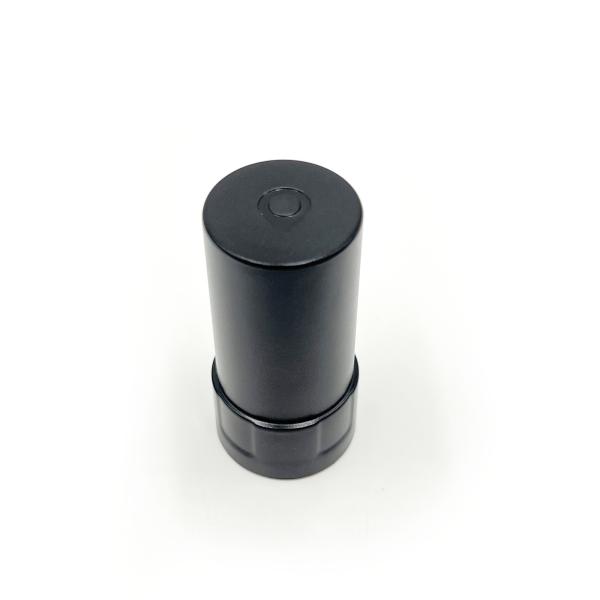

Satellite Positioning Antenna Helical Spiral Transmitting Multi-band Beidou GLONASS GPS GNSS Antenna

1. Specification

A. Electrical Characteristics
Frequency		1197-1278MHz; 1559-1606MHz
Supported Positioning signal bands		GPS: L1/L2 BDS: B1/B2/B3 GLONASS: G1/G2 Galileo: E1/E5b
Peak Gain		≥2dBi
Impedance		50Ohm
Polarization		RHCP
Axial Ratio		≤1.5 dB
Azimuth Coverage		360°
B. LNA and Filter Electrical Properties
LNA Gain	35±2dBi(Typ.@25℃)
Noise Figure	≤1.5dB@25℃,Typ.(Pre-filtered)
Output VSWR	≤1.8 : 1Typ. 2.0 : 1 Max
Operation Voltage	3-16 V DC
Operation Current	≤45mA
C. Material & Mechanical Characteristics
Connector Type		SMA connector
Dimension		Φ27.5x56mm
Radome material		PC+ABS
Waterproof		IP67
Weight		0.018Kg
C. Environmental
Operation Temperature		- 40 ˚C ~ + 85 ˚C
Storage Temperature		- 40 ˚C ~ + 85 ˚C
Humidity		≤95%

2. Antenna - S Parameter Test Data

2.1 VSWR

Multiband Gps Antenna Helical Spiral Transmitting Beidou GLONASS GPS GNSS

2.2 LNA Gain:

2.3 Radiation Pattern
